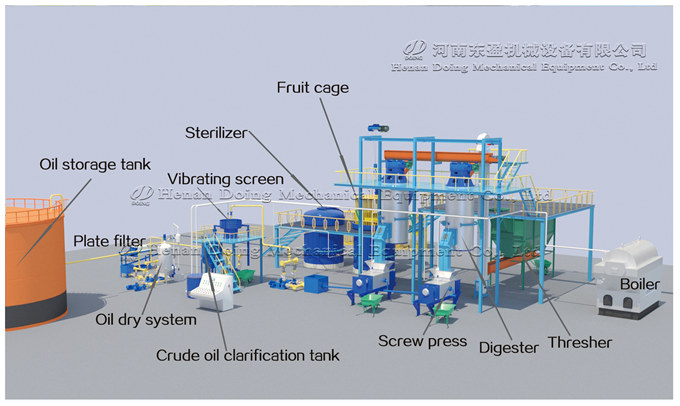

| 1,Hot Water Tank | 2,Vibrating Screen | 3,Oil Dry System |
Difference between old palm oil making machine and new generation palm oil making machine:
| Old type palm oil line | New type palm oil line | |
| Capacity | 1-2-3-5tph | 1-2-3-4-5tph |
| Sterilizing way | Use hot water boil bunches | Use boiler to provide steam or use hot water to boil bunches |
| Digesting part | Horizontal digester | Vertical digester |
| Pressing | Double screw press machine | New type palm oil press machine |
| Clarifying part | Clarifying tank and filter | Use vibrate screen, clarifying tank, filter, vacuum dryer |
| Hot water tank | No | Pressing and vibrate screen needs hot water to increase palm oil mobility, make machine running smoothly. |
| Final product state(Crude palm oil) | Ropy semi-liquid with some impurities | Clear liquid without impurities |
| Oil tank | Without oil storage tank | With big oil storage tank |
| Technology | Simple and easy | Same with big scale palm oil mill more than 30tph |
| Efficiency | Low | High efficiency and high oil yield |

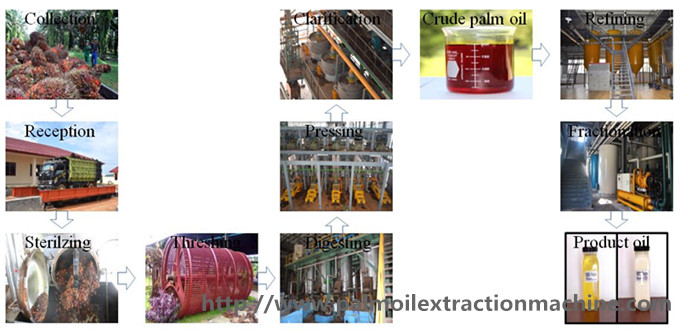

The working process of new technology palm oil making machine :
FFB(Palm fruit bunches)--Sterilizing--Thershing--Digesting--Pressing--Clarifying--Filtering--Drying--Crude palm oil
When you get fresh fruit bunches, usually use a truck to transport to your palm oil mill. Firstly put palm fuit bunches into fruit cages, then use electric crane to lift cages to sterilizer of new technology palm oil making machine, we use boiler to produce steam which can be gone into sterilizer. Which can make bunches soft and dry.
Then move bunches to thresher of new technology palm oil making machine for separating palm fruit from bunches.You can get palm fruit and empty bunches, empty bunches can be as fuel in boiler room. Palm fruit will go into digester and presser of new technology palm oil making machine for crash palm pulp and press them to get palm oil. Besides that, you can also get the mixture with palm nut and fiber in this step. Palm oil will be puried, filtered and dried through vibrating sieve, clarifying tank, filter and drying. The final clean red palm oil can be stored in the palm oil storage tank. The mixture with palm nut and fiber need be dried under sunshine or other ways, then separate them, you can sell palm nut to others, also can process them into palm kernel oil using our palm kernel oil extraction machine.
