Sunflower screw oil press machine

Sunflower screw oil press machine

Sunflower screw oil press machine

August 31, 2017 10:02

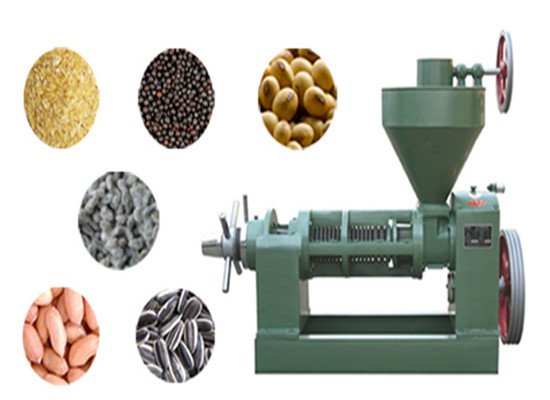

screw oil press machine   Model: Sunflower screw oil press machine
Capacity: 2-3MT/24hr
Power: 5.5kw
Size: 1540 x 540 x 620mm(reference dimension)
Weight: 370kg

Sunflower screw oil press machine and related parameters

Sunflower screw oil press machine is a larger capacity screw oil press machine than 0.5-2MT/24hr oil expeller. It makes use of screw-driving force to squeeze oil from plant seeds like rapeseed, canola, mustard, sunflowerseeds, soybeans etc. This model sunflower screw oil press machinery is of simple structure, it is easy toinstall, operate and maintain. Support continuous working with either hot or cold pressing.Sunflower screw oil press machine is ideal choice for small and medium size oil pressing plant, it can also be used to pre-press some high oil content vegetable plant.

 Raw materials and oil content:

Raw material Oil content
Peanut 44-55%
Camellia 58-60%
Castor seed 50-70%
Soybean 18-21%
Cotton seed 33-40%
Rapeseed 33-40%
Sesame seed 45-50%
Sunflower seed 40-50%
Rice bran 18-20%
Safflower seed 29-45%
Corn embryo/germ 30-40%
Walnut 40-65%
Flaxseed/Linseed 29-44%
Palm seed 50-55%
Coconut 35-45%

Our sunflower screw oil press machine can be used alone or equipment with other sunflower oil machine.Next is the small capacity sunflower oil production line:

screw oil press machine
Main equipment of sunflower oil machine


Main Steps of Making Sunflower Oil:
(1) Seed Cleaning: It is the first step to help ensure that a quality oil and meal are obtained. Aspiration,indent cleaning, sieving, or some combination of these are used in the cleaning process. During processing,meal quality can be affected by temperature and other factors.
(2)Pre-conditioning and Flaking: The cleaned seed is first heated to about 30-40ºC to prevent shattering. Some moisture adjustment may also be required. The preheated seed is then flaked on roller mills, set to very tight clearance.
(3) Cooking:The flaked seeds are then heated to about 75-100ºC in cookers. An important function of the cooking operation is to control enzymatic activity in the flaked seed, which depends on temperature and moisture content.
(4) Pressing: The heat-conditioned seed is passed into continuous sunflower screw oil press machine or expellers to reduce the oil content of the seed from about 42% (8% moisture basis) to 16-20% mechanically.
(5) Refining: To ensure good stability and shelf-life, the crude oil goes through a series of refining processes to remove compounds like phospholipids, mucilaginous gums, free fatty acids, colour pigments and fine meal particles.

Above is the main machinery included in the sunflower oil machine. If you are interested in start a sunflower oil mill plant business, this plant is sure to surprise you! Feel free to send us an inquiry through email if you have any questions about our sunflower screw oil press machine!
